Full technical specifications for the Torxup VoltGuard 6500 rapid charger: 6.5A output, 30 to 65 degree safe range, 4-LED battery health indicators, 50 to 55 minute charge for 5.0Ah Makita LXT batteries.
VoltGuard 6500 · Technical specifications
Torxup VoltGuard 6500: Technical Specifications & Professional Use Cases
The VoltGuard 6500 is a 6.5A rapid charger for 14.4–18V (LXT) lithium packs that blends speed, cell care, and diagnostics. It’s engineered as a Makita 18V 6A charger-class solution for teams that refuse downtime.
- 6.5Amulti-stage rapid
- 14.4–18V LXTslide-type packs
- 5.0Ah → ~50–55 mintypical charge time
- CE compliant12-month warranty
Quick reference
Torxup VoltGuard 6500 Specs Table
| Charge current | 6.5A (multi-stage) |
|---|---|
| Packs | 14.4–18V LXT slide-type (BL1815/30/40/50/60) |
| Typical times: | 2.0Ah ~20–25 / 3.0Ah ~30–35 / 4.0Ah ~40–45 / 5.0Ah ~50–55 / 6.0Ah ~55–65 |
| Cooling | Active fan |
| Protection | Over-heat/voltage, short-circuit, fault-battery |
| Display | SMART LCD (V/A/%) + LEDs |
| Size/weight | 15×20×7 cm / ~700 g |
| Input | 220–240V AC (UK 3-pin) |
| Cert | CE, Warranty 12 months, Returns 14-day |
Full data sheet
Core Specifications (expanded)
| Charge current: | 6.5A multi-stage rapid |
|---|---|
| Supported voltages: | 14.4–18V lithium (LXT slide-type) |
| Typical charge times: |
|
| Cooling system: | Active fan (battery + electronics airflow path) |
| Protection: | Over-heat, over-voltage, short-circuit, fault-battery detection |
| Indicators: | SMART LCD (V/A/%) + LED status |
| Dimensions/weight: | 15D × 20W × 7H cm, ~700 g |
| Input power: | 220–240V AC, 50–60 Hz (UK 3-pin plug) |
| Certifications: | CE compliant |
| Warranty: | 12 months (plus 14-day money-back) |
Diagnostics
SMART LCD Diagnostics (What You See, Why It Matters)
-
Live Voltage (V)
Confirms pack health and state under charge. -
Live Current (A)
Verifies the 6.5A push during early-stage recovery. -
State of Charge (%)
Pull at 80% when a quick turn is enough; finish to 100% for full cycle. -
LED Indicators
<80%, ≥80%, Full, and Fault flags help triage weak or damaged packs before they waste your time.
Field impact: Techs make smarter swap decisions, speeding up rotations without guessing.
Three stages
Charge Algorithm (Why “Fast” Doesn’t Mean “Hot”)
Stage 1
High-Rate Recovery
Early surge to recover voltage quickly on depleted packs.
Stage 2
Thermal Control
Active fan cooling holds temps in the sweet spot as internal resistance climbs.
Stage 3
Taper & Top-Off
Current reduces near full to avoid heat pile-up — a common cause of early cell ageing on rapid chargers.
Result: Pace comparable to Makita DC18RC / 18V 6A class with a focus on temperature stability throughout.
Makita LXT
Compatibility & Cross-Reference
Torxup Volt Guard 6500
- Designed for Makita LXT 14.4–18V slide batteries; commonly used packs include BL1815 / BL1830 / BL1840 / BL1850 / BL1860.
- Search intent we capture: “Makita 18V 6A charger”, “Makita DC18RC”, “fast charger for Makita 18V”.
- Nominative fair-use note: Makita® names are used solely to indicate compatibility and comparison. Torxup is an independent brand.
Charge-Time Calculator
ROI / Downtime Calculator
💰 Estimated monthly savings: £687.50
By trade
Professional Use Cases (detailed)
-
Joinery & Carpentry:
Burst-draw tools (saws, drivers) benefit from 80% pulls that take minutes off every swap. -
Electrical & HVAC:
Long days, many short cycles; fault detection helps isolate weak packs quickly. -
Roofing/Decking:
High ambient heat amplifies charge stress — active cooling keeps performance consistent. -
Mobile Vans:
Two-charger wall (A/B lanes) on a small inverter/generator maintains a clean rotation for two techs.
Charging walls
Bench Layouts
-
2–4 person crew:
2× VoltGuard 6500, 4–6 packs. Flow: Tool → Cool → Charge → Ready. -
5–8 person crew:
3–4 chargers mounted on ply at chest height; A–D lanes; runner rotates packs clockwise. -
Power planning:
Split across circuits; avoid a single long reel; maintain airflow clearance of 100–150 mm.
Cell care
Battery Health: Practical Rules
-
Cool first
Let hot packs sit 5–10 minutes; fans help, but cool starts are best. -
Don’t “float”
Avoid leaving packs on bays for days; store at 40–60% if idle. -
Ventilate
Dust-free, open space behind the charger vents. -
Track
Whiteboard weak packs; replace before they stall a day’s schedule.
Symptoms and fixes
Troubleshooting & Diagnostics
| Fault LED on immediately: | Cell or BMS issue; try a different pack to confirm. |
|---|---|
| Slow finishing at 95–100%: | Normal taper protects cells; pull at 80% if you only need a quick turn. |
| Fan never spins: | Low ambient / top-off only; fan ramps with thermal demand. |
| Pack hot to the touch: | Pause to cool; check ventilation; inspect for age-related internal resistance. |
In the field
Real-World Use Cases
Joinery
Why it works
Rapid charging keeps workflow smooth in the shop, ensuring batteries are ready before the next cut or assembly.Pro Tips
Mount multiple chargers on a wall rack so every battery has a slot and downtime is minimized.
Roofing & Decking
Why it works
Outdoor projects demand non-stop power. Fast charging means your crew can rotate packs and stay productive.Pro Tips
Keep chargers under a canopy or sheltered area to protect them from dust and weather exposure.
Electrical & HVAC
Why it works
Service calls rely on quick turnarounds. Rapid recharges mean tools are always ready for the next installation or repair.Pro Tips
Carry a compact inverter or van-mounted power source to keep chargers running on-site.
Mobile Vans
Why it works
Transform your van into a mobile workshop. With active cooling and smart charging, batteries are always road-ready.Pro Tips
Use cable management and mounting boards inside the van to create a tidy, efficient charging
Buy the VoltGuard 6500 direct
VoltGuard 6500 Rapid Charger
5.0/55 VoltGuard reviews£29.95 each £29.95
- VoltGuard 6500 6.5A rapid charger with UK plug
- Smart LCD: live voltage, current and charge %
- Fits Makita 14.4V–18V LXT Li-Ion batteries
- 12-month warranty
Need the mask too? Torxup CoreMask — £15.95 with both filter pairs included.
Buyer questions
Frequently Asked Questions
Will this replace a Makita DC18RC?
It’s a Makita 18V 6A charger-class alternative designed for LXT slide packs, with SMART LCD and active cooling.
How fast is it?

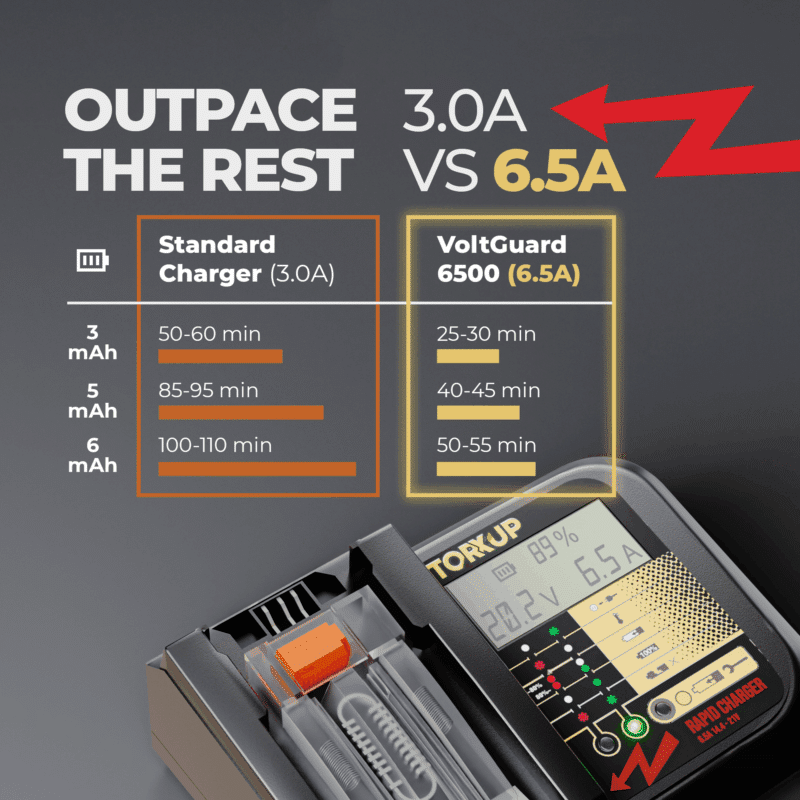

Typical 5.0Ah ~50–55 mins under normal conditions; 3.0A chargers often take ~90 mins.
What protections are built in?
Over-heat, over-voltage, short-circuit, plus fault-battery detection.
Warranty & returns?
14-day money-back and 12-month warranty from Torxup.
Watch: Makita Battery Chargers — DC18RC vs DC18SD Comparison
Legal & Safety
Use only with quality lithium packs. Follow site safety rules. Makita®, LXT® and DC18RC are trademarks of their respective owners and are referenced solely for compatibility/comparison.
